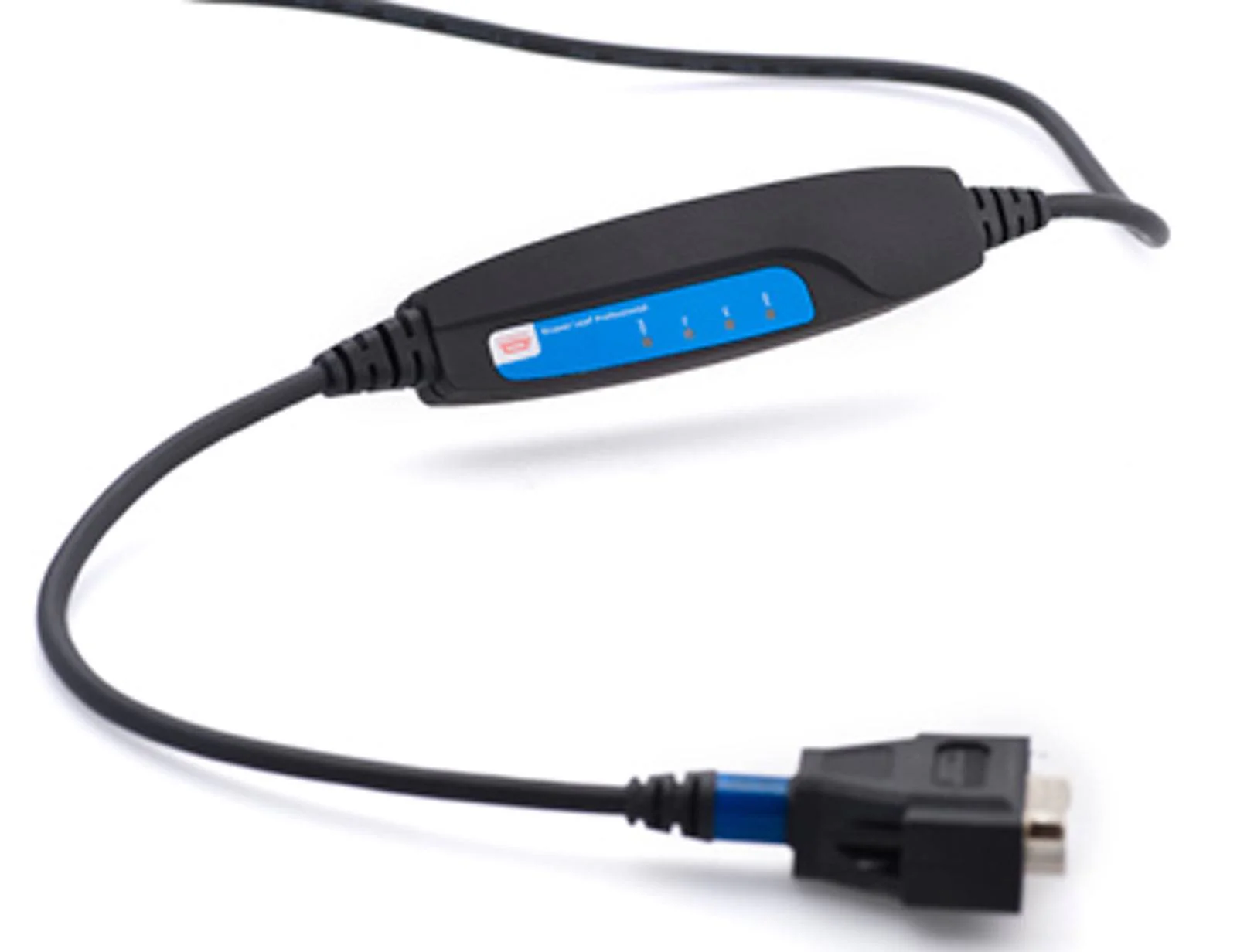

Kvaser Leaf Professional LIN, USB to LIN Bus Interface

The Kvaser Leaf Professional LIN provides an easy way of connecting a PC with LIN bus devices. Compatible with both LIN 1.3 and 2.x, it incorporates advanced features like error handling, silent mode for analyzing tools, and 100% compatibility with applications written for all Kvaser hardware with Kvaser’s LINlib.

Major Features

• Supports LIN 1.3 and 2.x
• Excellent error handling.
• Supports silent mode for analyzing tools.
• Low power consumption.
• Excellent EMC performance.
• Polyurethane cabling for extreme environments.
• Galvanic isolation of the LIN bus driver stage to protect the hardware.
• 100% compatible with applications written for all Kvaser hardware with KVASER's LINlib.
• Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable.
• Interfaces the CAN bus with a 9-pin D-SUB connector or OBD2 connector.
• Designed for USB 2.0, backward compliant with USB 1.1.v Quick and easy Plug-and-Play installation.
• Quick and easy Plug-and-Play installation
• A practically unlimited number of Kvaser Leafs can be connected via standard USB hubs for simultaneous use on a single PC.

Warranty

• 2-Year Warranty from Kvaser.

Software

• Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.

Specifications

Mfg. Part Number

• 73-30130-00269-2

Technical Specifications

• Bitrate: 1-20 kbps
• Buffers: Auto RX Buffers, Auto TX Buffers, On Board Buffer
• Certificates: CE, RoHS
• Channels: 1
• Connectors: DSUB 9
• Current Consumption: Typical 70mA
• Error Counters Reading: Yes
• Error frame generation: Yes
• Galvanic Isolation: Yes
• Height: 20 mm
• Interfaces: USB
• Length: 100 mm
• Material: Glass Fiber Reinforced PA6
• OS: Win XP, Linux, Win 7, Win Vista, Win 8, Win 10
• Silent mode: Yes
• Sound: Yes
• Temperature Range: -40 to 85 °C
• Timestamp resolution: 1 µs
• Weight: 100 g
