Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor)
HomeStore

Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor)

Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor)

Sewell Ghost Wire can be used on almost any flat surface. Perfect for running stereo signals across rooms, around corners, in automobiles, under flooring, or any situation where wires cannot be run through walls.

These terminal blocks are designed specifically for use with Ghost Wire (Sold Separately).

Diagram

How to Terminate Ghost Wire

  1. Peel back the white backing about 1” and cut it off, exposing the adhesive and conductors.
  2. Trim away white covering in between and at the edges of the conductors.
  3. Remove the white covering from the opposite side of the conductor. It does not have adhesive between the conductor, and should leave a nice clean copper surface when removed.
  4. Fold the conductors 2-4 times, keeping the clean copper surface outwards.
  5. Insert the conductors into the Terminal Block and tighten the set screws.
  6. Insert your standard speaker cable in the other end of the terminal block and tighten the set screw.

Specifications

Mfg. Part Number

  • SW-29982 1 pc. 2 Conductor Terminal Block
  • SW-29982-4 4 pc. 2 Conductor Terminal Block
  • SW-29982-8 8 pc. 2 Conductor Terminal Block
  • SW-32843 1 pc. 4 Conductor Terminal Block

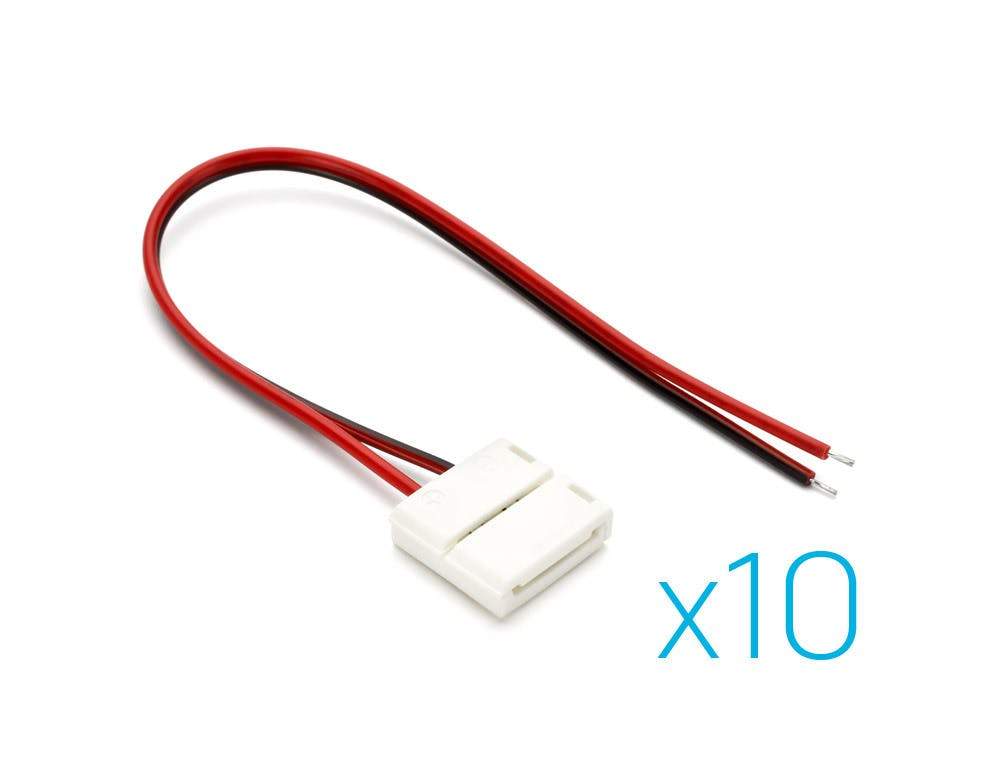

  • SW-32874-CON 10 pc. 2 Conductor 23 AWG

Brand

  • Ghost Wire™ by Sewell

Specifications

  • Terminal Block
  • Made for Sewell 2 or 4 Conductor Ghost Wire
  • Converts flat speaker wire to regular speaker wire
Select Conductors
Select Quantity
From $7.34

Original: $20.98

-65%
Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor)—

$20.98

$7.34

More Images

Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor) - Image 2
Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor) - Image 3
Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor) - Image 4
Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor) - Image 5

Ghost Wire Terminal Block – Connector for Flat Speaker Wire (2 & 4 Conductor)

Sewell Ghost Wire can be used on almost any flat surface. Perfect for running stereo signals across rooms, around corners, in automobiles, under flooring, or any situation where wires cannot be run through walls.

These terminal blocks are designed specifically for use with Ghost Wire (Sold Separately).

Diagram

How to Terminate Ghost Wire

  1. Peel back the white backing about 1” and cut it off, exposing the adhesive and conductors.
  2. Trim away white covering in between and at the edges of the conductors.
  3. Remove the white covering from the opposite side of the conductor. It does not have adhesive between the conductor, and should leave a nice clean copper surface when removed.
  4. Fold the conductors 2-4 times, keeping the clean copper surface outwards.
  5. Insert the conductors into the Terminal Block and tighten the set screws.
  6. Insert your standard speaker cable in the other end of the terminal block and tighten the set screw.

Specifications

Mfg. Part Number

  • SW-29982 1 pc. 2 Conductor Terminal Block
  • SW-29982-4 4 pc. 2 Conductor Terminal Block
  • SW-29982-8 8 pc. 2 Conductor Terminal Block
  • SW-32843 1 pc. 4 Conductor Terminal Block
  • SW-32874-CON 10 pc. 2 Conductor 23 AWG

Brand

  • Ghost Wire™ by Sewell

Specifications

  • Terminal Block
  • Made for Sewell 2 or 4 Conductor Ghost Wire
  • Converts flat speaker wire to regular speaker wire

Product Information

Shipping & Returns

Description

Sewell Ghost Wire can be used on almost any flat surface. Perfect for running stereo signals across rooms, around corners, in automobiles, under flooring, or any situation where wires cannot be run through walls.

These terminal blocks are designed specifically for use with Ghost Wire (Sold Separately).

Diagram

How to Terminate Ghost Wire

  1. Peel back the white backing about 1” and cut it off, exposing the adhesive and conductors.
  2. Trim away white covering in between and at the edges of the conductors.
  3. Remove the white covering from the opposite side of the conductor. It does not have adhesive between the conductor, and should leave a nice clean copper surface when removed.
  4. Fold the conductors 2-4 times, keeping the clean copper surface outwards.
  5. Insert the conductors into the Terminal Block and tighten the set screws.
  6. Insert your standard speaker cable in the other end of the terminal block and tighten the set screw.

Specifications

Mfg. Part Number

  • SW-29982 1 pc. 2 Conductor Terminal Block
  • SW-29982-4 4 pc. 2 Conductor Terminal Block
  • SW-29982-8 8 pc. 2 Conductor Terminal Block
  • SW-32843 1 pc. 4 Conductor Terminal Block
  • SW-32874-CON 10 pc. 2 Conductor 23 AWG

Brand

  • Ghost Wire™ by Sewell

Specifications

  • Terminal Block
  • Made for Sewell 2 or 4 Conductor Ghost Wire
  • Converts flat speaker wire to regular speaker wire
